分體式經濟型鍛造截止閥
時間：2019-11-13 14:57:14 作者：

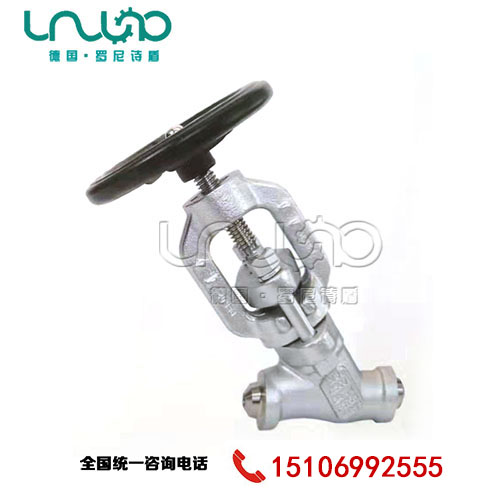

分體式經濟型鍛造截止閥
Split type economical forged globe valve
- 高溫高壓系統
- 高沖刷等系統
技術參數：
工作壓力：1500LB、2500LB、4500LB
工作溫度：65℉(54℃)至1200℉(648℃)
承插焊端：ASME B16.11
對焊端：ASME B16.25
螺紋端：ASME 1.20.1
特點:
- 不帶推力軸承，扭矩小
- 經濟型結構
- 分體式設計更經濟
- 無旋轉的閥桿經硬化處理和研磨拋光，減少扭矩，防止填料受到扭
矩損壞；
- 厚度≥1.5mm（0.06）高溫真空焊接司太立閥座環；對于熱變化具有
很好的抵抗力；
- 材質可選：A105、F36H、F91、F92、WB36
- 可提供大于2的閥門，并可配氣動、電動執行器
Applications
- High temperature and pressure system
- High flush system
Specifications
- Working pressure: 1500LB、2500LB、4500LB
- Working temperature: 65℉(54℃) to 1200℉(648℃)
- SW connection:ASME B16.11
- SW connection：ASME B16.25
- Thread connection：ASME 1.20.1
Features
- Without thrust bearing ;
- Economic structure;
- More economical with split design
- Non-rotaing stem with hardened and polished to reduce
operation torque and protect packing from torque damage;
- Thickness≥1.5mm（0.06）high temperature vacuum welding
stellite seat ring;For thermal distortion,it has good
resistance;
- Available material:A105、F36H、F91、F92、WB36
- Size>2 also can be provided
- Available type: pneumatic and electric actuators
