減壓閥
時間：2019-11-14 15:45:47 作者：

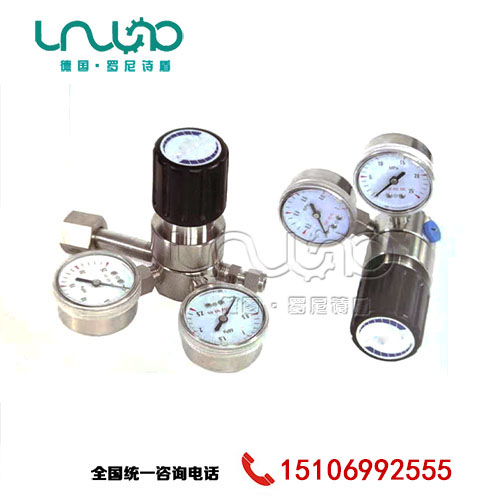

減壓閥
Pressure reducing valve
應用范圍
- 實驗室、半導體
- 分析儀器、特殊氣體系統
技術參數
最大進口壓力：6000PSI(413)bar
最大出口壓力：3600PSI(248)bar
最高工作溫度：-10℉(-23℃)至400℉(204℃)
176℉(80℃)帶PCTFE閥座
392℉(200℃)帶PCTFE閥座
特點:
- 波紋無穿孔隔膜
- 金屬對金屬隔膜密封
- 內部容積小
- 兩件式閥蓋設計使隔膜密封隨線性負載
- 進口內有穩固固定的高流量
Applications
- Laboratory,semiconductor
- analytical instrument,special gas system
Specifications
- Inlet mas working pressure:6000PSI(413)bar
- Outlet mas working pressure:3600PSI(248)bar
- Max working temperature:
176℉(80℃)with PCTFE seat
392℉(200℃)with PEEK seat Features
Features
- Corrugated non-jperforated diaphragm
- metal-to-metal seal diaphragm seal
- Small internal vlume
- Two-piece cap design provides linear load on the diaphragm seal
- High-flow,dual-gauge type fillter positively retained in inlet port
